Networks, VLANs, and DHCP

Network settings describe the site you want: IPv4 networks, optional VLANs, DHCP service, and firewall zones. Saving a model records intent in the controller. Preview and Apply are separate actions.

Router write impactEditing and saving desired state changes only the controller database. Apply can change controller-owned `network`, `dhcp`, `firewall`, and related wireless UCI sections after preview, preflight, and acknowledgement.

Before you configure a network

Have all of these ready:

• a tested controller backup and router configuration backup;
• one adopted non-critical device for the first rollout;
• an IPv4 CIDR and, when applicable, VLAN ID;
• the intended firewall zone and forwarding behavior;
• a DHCP pool that fits inside the subnet and does not include infrastructure addresses you plan to configure statically;
• capability evidence for DSA, legacy swconfig, or a direct-interface LAN, and for the relevant network/firewall rpcd modules;
• physical switch and trunk configuration outside oonfeeWRT, if traffic must traverse unmanaged infrastructure.

Keep a recovery path

An incorrect management VLAN, bridge, firewall input policy, or DHCP plan can disconnect the controller and clients. Start with one non-critical device, stay on a known management path, and rely on the rollback timer—not on an untested assumption that another path will work.

Understand the model

Network

A network gives a named IPv4 segment its CIDR, optional VLAN ID, DHCP behavior, and firewall-zone membership. Networks are site-wide; device functions and capability evidence determine what each Preview can safely render.

VLAN

A VLAN ID labels traffic; it does not configure every switch between the controller and the client. oonfeeWRT will not silently convert a bridge that is not already VLAN-aware. Legacy swconfig port writes remain observe-only in v0.1.3 because port topology and safe mutation are hardware-specific.

A board may instead present LAN as one direct interface, such as eth1, with no independent switch ports. That is not automatically swconfig and does not mean inspection missed hardware. v0.1.3 does not create tagged VLAN attachments on this layout: Preview omits the unsupported attachment and leaves existing LAN/VLAN configuration unchanged. Untagged or manually prepared behavior still requires a fresh Preview; do not generalize from the read-only Cudy M3000 v2 inspection, where tagged VLAN management was not validated.

DHCP

DHCP settings must stay within the network CIDR. The editor validates missing, inverted, or out-of-range pool values before Apply. Plan the router address, static infrastructure, reservations, and dynamic range together.

Firewall zone

The zone anchors forwarded traffic policy and explicit firewall-rule scope. A zone name is not cosmetic: moving a network can change effective policy. The Zone Matrix edits whole-zone forwarding; router-local input rules are separate explicit policies. oonfeeWRT previews controller-owned firewall sections and blocks or warns on conflicts it cannot safely reconcile.

Create a network

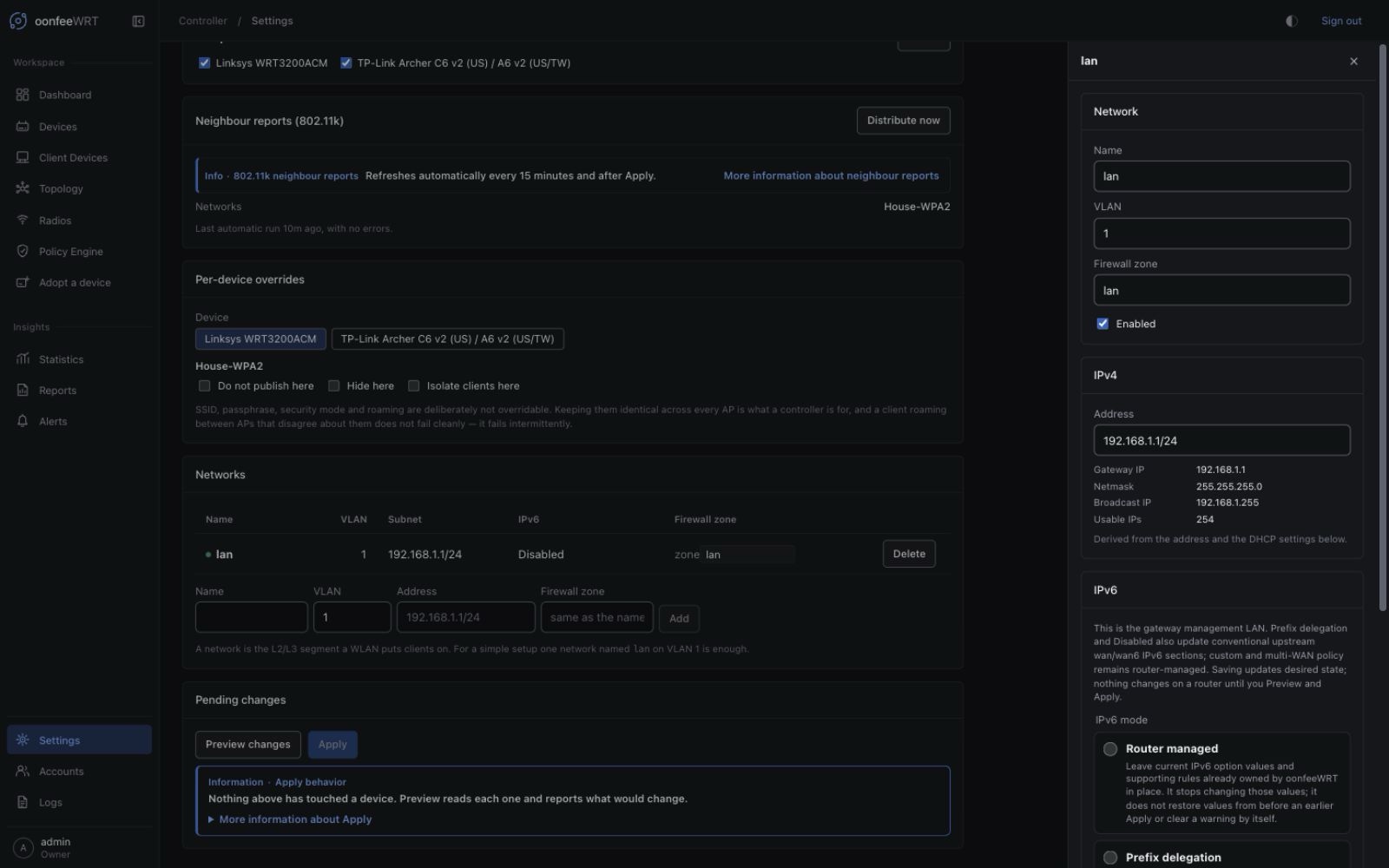

1. Open Settings → Network.
2. Find Networks and choose Add network.
3. Enter a unique, descriptive name.
4. Enter the IPv4 CIDR, such as 192.168.20.1/24, using the router address in the prefix where the editor expects the interface address.
5. If the segment is tagged, enter its VLAN ID and confirm the upstream trunks already carry it.
6. Choose or create the firewall zone.
7. Enable DHCP only if this managed Gateway should provide it.
8. Set the DHCP pool and lease options shown by the editor.
9. Save desired state.

At this point no router Apply has happened.

Review zone behavior

Before Apply, open the Policy Engine → Zone Matrix and Master Table and answer:

• Is forwarding to WAN allowed or denied as intended?
• Which other managed zones can this zone initiate connections toward?
• Are inbound port forwards or explicit gateway-input rules required?
• Does foreign firewall configuration already cover or conflict with this path?

The Zone Matrix does not model DHCP/DNS access to the Gateway itself. Review the network's DHCP settings and any explicit gateway-input rules separately.

Use explicit policy rules for exceptions. Avoid broad forwarding merely to make a test pass.

Preview the fleet change

Open the review action in Settings and generate a fresh Preview. A preview is bound to the current desired state and fleet; if either changes, generate it again.

Inspect every device bucket:

• Changes — owned UCI sections/options that would be staged;
• No change — desired state already matches observed owned state;
• Omissions — capability or device-function rules intentionally skip work;
• Conflicts/blockers — foreign state, missing sources, unsupported bridge shape, driver defects, or invalid intent;
• Acknowledgements — traversal or hardware risks you must explicitly accept.

The preview redacts WLAN and mesh keys. A preview should never be used as a way to reveal stored secrets.

Apply and verify

1. Resolve blockers rather than bypassing them on the router.
2. Read every acknowledgement and select only those you understand.
3. Start Apply once. The operation is durable; do not create a second attempt merely because the browser disconnects.
4. oonfeeWRT preflights the fleet, applies non-Gateway devices first, and the Gateway last.
5. Each device stages a bounded UCI batch and starts OpenWrt's rollback window.
6. The controller reconnects, reads the expected state, runs the health checks, and confirms only on success.

After completion:

• confirm the operation receipt reports a known outcome for every device;
• verify the management path still works;
• connect a test client to the segment;
• verify address, gateway, DNS, and intended Internet/inter-zone reachability;
• inspect Logs → Audit for the Apply record;
• compare the device's owned-state/capability view with the preview.

If connectivity fails

Do not immediately repeat Apply. OpenWrt should revert an unconfirmed change when the rollback window expires.

1. Keep the router powered and avoid restarting it during the window.
2. Wait for the durable operation status to settle.
3. Reconnect through the original management path.
4. Confirm the prior configuration returned in LuCI or with read-only UCI inspection.
5. Read the controller receipt and logs for the device boundary it crossed.
6. Correct desired state, generate a new preview, and try again only after the outcome is known.

If the outcome is reported as unknown or possible write, treat the router as changed until independently inspected.

Coexist with LuCI and existing UCI

oonfeeWRT owns only sections it created and recorded. Human-managed sections remain visible but are not silently rewritten. This has two consequences:

• foreign configuration can block a requested intent when both would control the same effective behavior;
• renaming or manually removing an owned section outside the controller can break ownership evidence and requires investigation, not automatic takeover.

Make a deliberate ownership choice. Do not repeatedly edit the same logical network in both LuCI and oonfeeWRT.

Common problems

Preview finding	Meaning	Safe response
Bridge is not VLAN-aware	The live bridge cannot accept the requested safe rendering	Convert it manually with a tested OpenWrt-specific plan, or use an untagged design; oonfeeWRT will not convert it silently
Legacy swconfig device	Per-port VLAN writes are not safely generalized	Keep port configuration outside oonfeeWRT and use supported observation/site features
Single-interface LAN with no switch ports	The layout was read successfully, but v0.1.3 cannot create a tagged VLAN attachment on it	Keep existing LAN/VLAN configuration unchanged or prepare it manually with an OpenWrt-specific recovery-tested plan, then generate a fresh Preview
Foreign firewall conflict	A human-owned rule/zone affects the requested traffic path	Inspect the exact UCI/nft behavior, then remove or redesign one owner intentionally
Missing firewall4 capability	The controller cannot establish the required firewall backend	Install/enable the supported OpenWrt component outside adoption, then reprobe
DHCP range invalid	Pool is incomplete, outside the subnet, or conflicts with the interface plan	Correct the CIDR/pool before preview
Stale preview	Desired state or fleet changed after preview	Generate and review a new preview
Apply interrupted	Browser or controller connection ended during a durable operation	Reopen the operation status; never assume failure means no write
