Alerts and webhook notifications

Added in v0.1.6

Alerts was introduced in v0.1.6. The screenshots were captured on 12 September 2026 from the v0.1.7 release-candidate UI source, before tagging; no rule or external notification destination was enabled for the captures.

Alerts turn the controller's existing observations into conditions you can follow over time. They answer questions such as “Has this router remained offline?” and “Has the gateway's measured loss stayed above my threshold?”

The controller evaluates rules even when no browser tab is open. It stores condition state, incident history, cooldowns, and pending notifications in its own database. A missing observation is unknown, not a healthy measurement and not confirmation that an existing incident recovered.

Router write impactAlert rules are controller-local. Evaluation uses existing inventory and stored telemetry; it does not contact, reconfigure, restart, or install software on a router. Optional webhook delivery makes outbound HTTPS requests only after an Owner explicitly configures and enables it.

Rules, incidents, and optional external delivery are separate. No rule was saved and no notification delivery was configured for this capture. Dark-mode capture · Select image to open full size

Create a rule

1. Sign in as an Owner and open Insights → Alerts in the sidebar (direct route: /alerts).
2. Choose an adopted device and one of the conditions below.
3. Give the rule a short, recognizable name.
4. Set its threshold, sustained duration, and notification cooldown.
5. Enable and save the rule. Allow the next one-minute evaluation to run.

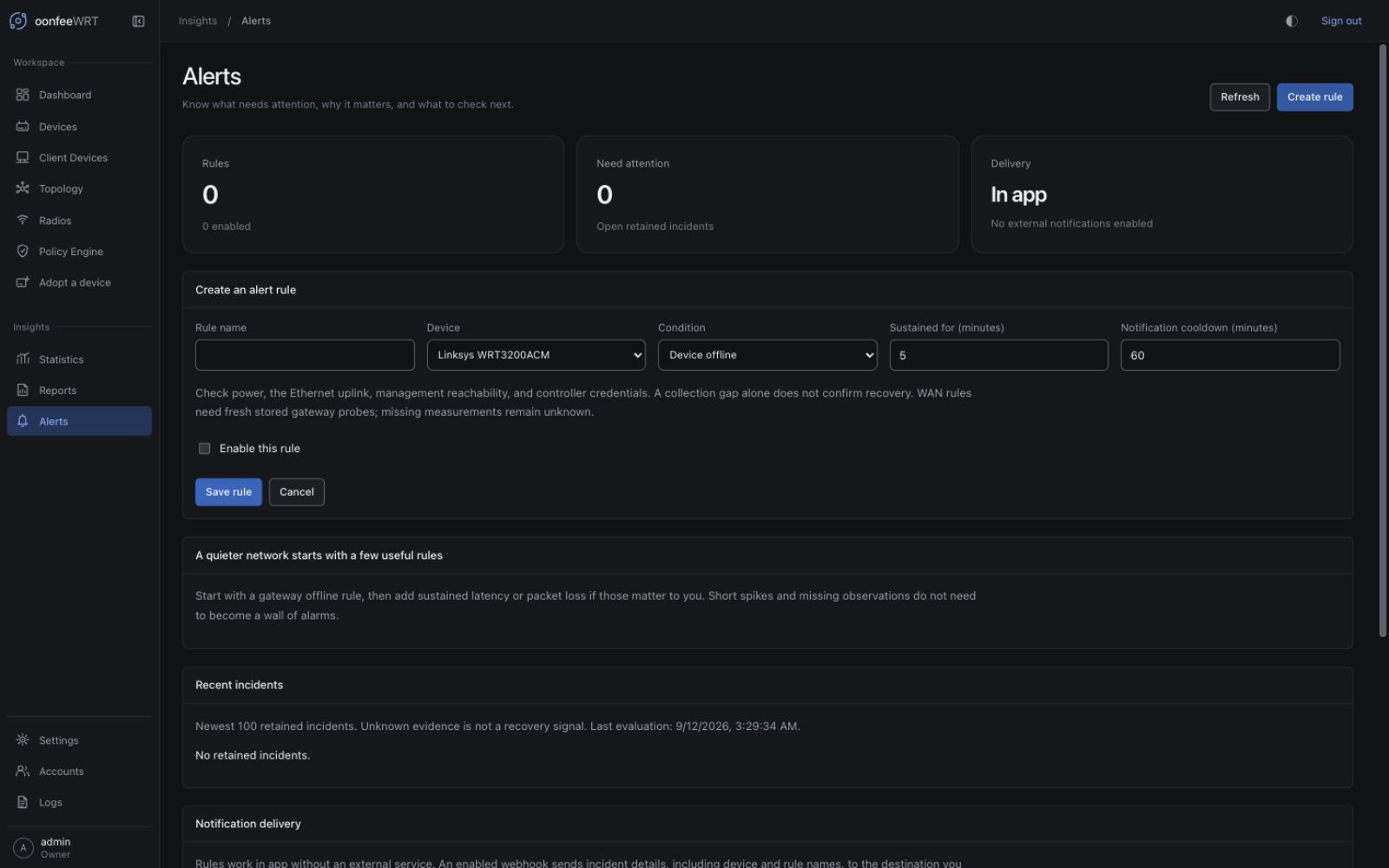

Review the target, condition, sustained duration, and cooldown before saving. This form was left unsaved; it did not create a rule or send a notification. Dark-mode capture · Select image to open full size

All signed-in roles can read rules and incidents. Only Owners can create, change, or remove rules and configure notification delivery. The endpoints retain the controller's normal session and CSRF protections.

Condition	Threshold	Required evidence
Device offline	Not applicable	An adopted device that has answered before, has active polling, and has exceeded its effective offline timeout
WAN latency	Greater than the configured milliseconds	Fresh, consecutive five-minute ICMP latency rollups from the currently observed managed gateway
WAN loss	Greater than the configured percentage	Fresh, consecutive five-minute ICMP loss rollups from the currently observed managed gateway

The offline timeout follows the device's effective polling interval, including an intentionally widened interval. Pending adoption, never-observed devices, and polling temporarily suspended for configuration work do not produce a fabricated offline reading.

WAN probes measure the gateway's ICMP path to 1.1.1.1. They do not prove the availability of every Internet service, DNS resolution, or complete ISP uptime. A monitor-only router or a device without proved current managed-gateway placement cannot provide these WAN rule inputs.

Sustained duration and cooldown are different

• Sustained duration is how long recurring evidence must show the condition before an incident opens. The allowed range is 60 seconds to 24 hours.
• Cooldown limits new firing notifications from a rule after a previous firing notification was queued. The allowed range is 60 seconds to seven days.
• A continuing incident is not sent repeatedly every minute. A fresh recovery is a separate transition and can produce its own notification.

WAN evidence is recorded in five-minute buckets. A one-minute sustained setting does not turn those samples into minute-resolution measurements: another fresh bucket is still required. Reading the same retained point repeatedly never satisfies a hold. Missing buckets or a long evaluation interruption reset a pending hold rather than inventing continuity.

Maximums: 50 rules; 80 characters in a rule name; latency threshold above zero and at most 60,000 ms; loss threshold above zero and at most 100%.

Understand a rule's state

State	Meaning	What to do
Disabled	Evaluation is switched off for this rule	Enable it when monitoring is wanted
Unknown	Fresh usable evidence is unavailable	Check device reachability, polling state, gateway selection, and telemetry coverage
Pending	The condition is observed, but the sustained duration is not yet proved	Allow fresh observations to continue; inspect the source rather than assuming an alarm
Firing	A sustained condition opened an incident	Investigate the router or WAN path named in the incident
Clear	The latest usable observation is within the rule threshold	No action is required for that observation

An incident remains open through unknown coverage. It resolves only after a newer usable observation proves recovery. The incident list and the current rule state therefore can differ: an open incident alongside an unknown rule means “recovery has not been confirmed,” not a contradictory health score.

Disabling a rule stops evaluation and cancels its pending notification attempts, including retries. It does not falsely mark an active incident resolved. Re-enabling the rule does not replay those cancelled notifications. Changing its target or condition while that incident is active is blocked; wait for observed recovery or remove the rule. Removing a rule stops its evaluation and pending delivery, but retains its historical incident record.

Rule targets also bind to the original device identity internally. Removing a router and later reusing its numeric inventory ID cannot silently redirect an old rule to a different device.

Enable optional webhook delivery

Local incident monitoring works without an external service. To receive events elsewhere, configure a receiver that accepts a generic JSON webhook.

1. Open the notification delivery configuration as an Owner.
2. Enter the receiver's public HTTPS URL.
3. If required by the receiver, enter its bearer token.
4. Enable delivery and save. Saving does not send a test notification.
5. When a new qualifying condition occurs, inspect delivery status in Alerts and confirm receipt in the receiving service.

The entire destination URL and bearer token are encrypted with the controller keyring. Read responses expose only the destination hostname and whether a destination is configured; they never return its URL path, query string, token, or ciphertext. Leaving a secret field omitted preserves its saved value; clearing the URL removes the destination when delivery is disabled.

This is a generic webhook, not an implicit Telegram, Slack, or Discord API adapter. Services with a different required payload need an adapter you control.

Network and privacy boundary

• HTTPS and valid TLS certificates are required. Redirects are not followed.
• Localhost, private networks, link-local addresses, reserved ranges, and metadata-service addresses are blocked. Self-hosted private-LAN receivers are not supported by this delivery path.
• DNS answers are checked at send time and the actual connection is pinned to an approved public address. A hostname resolving partly to private addresses is rejected. Environment proxy settings cannot bypass this check.
• The receiver sees the controller's outbound public address and the incident fields, including rule name, device name, condition, value, and timestamps. Configure delivery only to a destination you trust with that information.

Payload and delivery behavior

Each request uses Content-Type: application/json and includes:

{
  "event_id": "oonfeewrt-alert-12-firing",
  "event": "firing",
  "at": 1800000000,
  "incident": {
    "id": 12,
    "rule_id": 3,
    "rule_name": "Gateway latency",
    "device_id": 1,
    "device_name": "Gateway",
    "condition": "wan_latency",
    "state": "firing",
    "started_at": 1800000000,
    "resolved_at": null,
    "value": 130,
    "delivery_state": "pending",
    "delivery_error": ""
  }
}

All API and notification timestamps are Unix seconds. resolved_at is null until a newer observation confirms recovery. The request also includes X-OonfeeWRT-Event-ID with the same stable event identifier.

The receiver should return a 2xx response and deduplicate by event_id. Delivery is at least once when retried, not exactly once: the receiver may accept a request just before the controller loses its response or restarts.

Delivery is bounded to two attempts per evaluation, a five-second request timeout, up to three attempts per event, five minutes between retries, and a 30-minute pending-event lifetime. The queue holds at most 100 events. Failures, expiry, queue exhaustion, and cooldown suppression are visible; transport errors are redacted so destination credentials cannot appear in status text.

The controller retains up to 500 incident records and returns the newest 100 in the workspace. Configuration changes cancel pending delivery rather than replaying old incidents to a newly selected destination. A restart waits one evaluation cadence before processing; cooldowns and open incidents survive.

Restoring a controller backup

A portable restore pauses external webhook delivery and cancels queued notifications before the restored database can become active. It preserves rules, incident history, cooldown history, and the encrypted destination. Pending holds and the last evaluation are reset; existing open incidents are not marked recovered without newer evidence.

After restoring, review the destination and the new controller environment in Alerts → Notification delivery, then explicitly enable external delivery when ready. Re-enabling does not replay cancelled historical notifications. In-app rule evaluation can resume independently of external delivery.

Troubleshoot without hiding useful evidence

Symptom	Checks
Rule stays unknown	Confirm the router has completed adoption and a successful poll; check whether polling is suspended and whether its identity still matches
WAN rule stays unknown	Confirm the selected device is the observed managed gateway and Statistics contains consecutive fresh ICMP buckets
Hold takes longer than expected	WAN resolution is five minutes; a gap restarts the pending hold, and a retained point cannot advance it
New incident has no notification	Check whether delivery is configured and enabled, whether the rule is in cooldown, and whether the pending queue is full
Webhook delivery failed	Check public DNS, HTTPS/TLS validity, receiver authentication, and its required JSON format; confirm it returns 2xx without redirecting
Open incident becomes unknown	Observations stopped before recovery could be confirmed; restore coverage rather than treating missing data as success
Rule editing is blocked	The incident is still active. Disable the rule to stop evaluation, or wait for proved recovery before changing its condition

Alerts do not replace Logs, detailed Statistics, or manual investigation. They provide a compact, sustained-condition view of the same observed network, with delivery controls that remain explicit.
