Homelab AtlasMake a diagram of your homelab.

Add your machines and apps, pick the logos, and export a PNG or SVG. Atlas runs in Docker and saves the project in your browser.

Get started
Explore the editor
GitHub
Homelab Atlas mark with three stepped teal strokes

Add your gear

Add servers, network devices, hardware notes, service groups, VLAN labels, and connections.

Run it at home

Atlas runs on your own machine. There are no accounts, telemetry, AI calls, or network scans.

Save and share

Save JSON when you want an editable backup, or export an SVG or PNG when you want an image.

See the editor ​

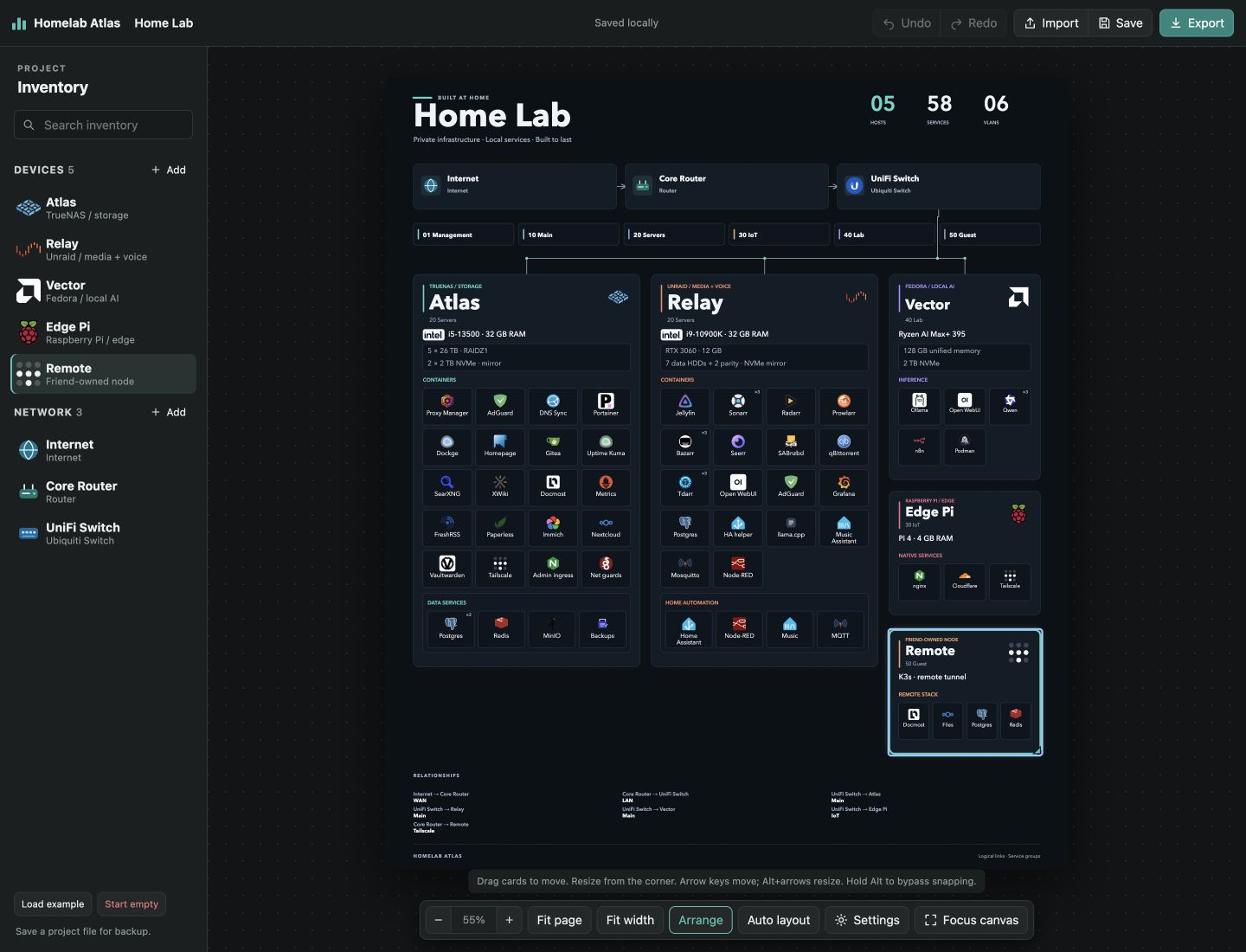

Homelab Atlas editor showing a fictional sample project

Add devices and services on the left, edit the details on the right, and see the diagram update in the middle.

I posted a diagram of my homelab on Reddit and someone asked how they could make one too. I wanted an app that made diagrams like it easy to build and update without depending on an LLM. That's where Homelab Atlas started.

See the result ​

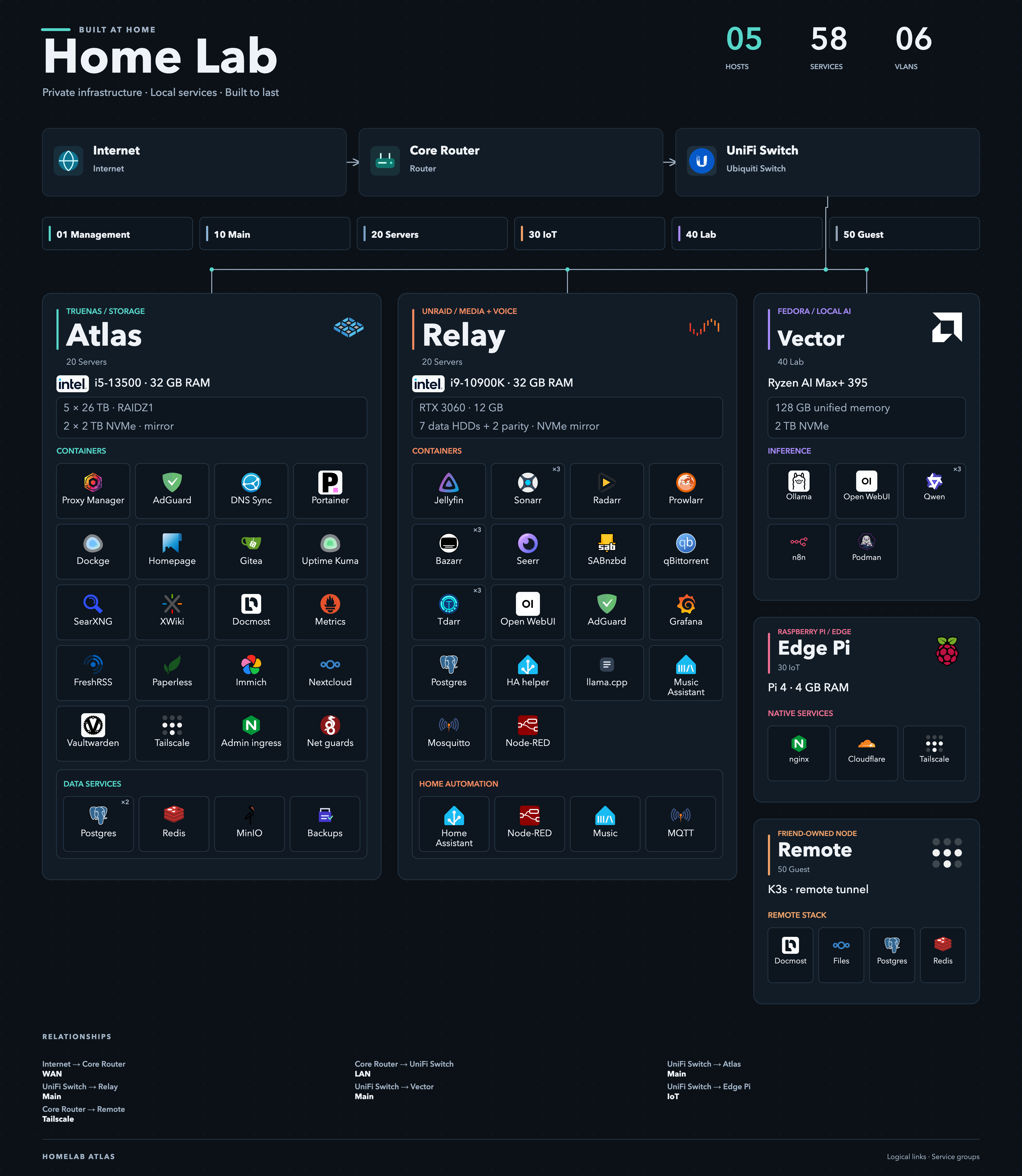

Example Homelab Atlas diagram exported from the fictional sample

Start with the automatic layout, then arrange device cards if the composition needs a small adjustment. The preview and exports stay in sync.

Making your first diagram ​

1 · StartLoad the example or begin empty.
2 · InventoryAdd devices, hardware, and services.
3 · ConnectAdd networks, VLANs, and relationships.
4 · RefineChoose the style or arrange device cards.
5 · SaveBack up JSON; export SVG or PNG.

Atlas only knows what you add or import. Start with installation and safe deployment, then use the editor guide when you want more detail on the controls.
